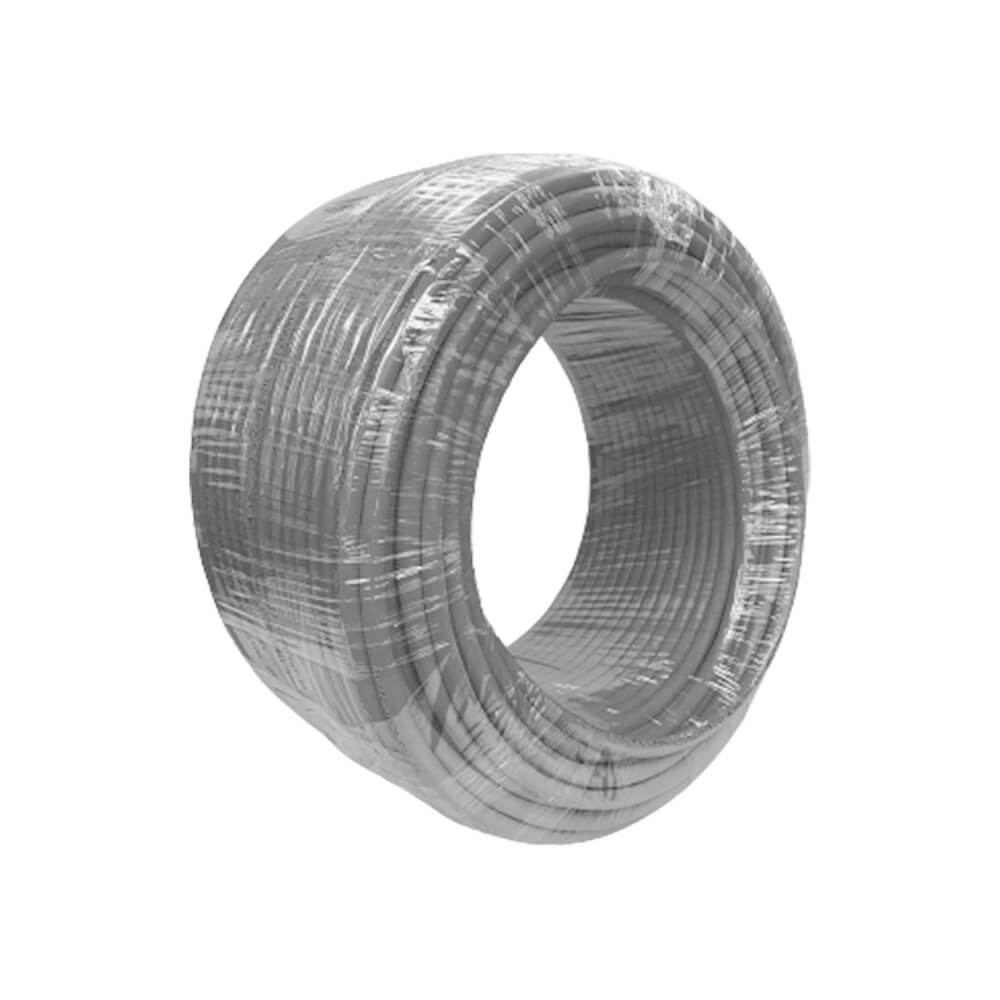

Cat6 Plenum (CMP) - 23AWG, UTP, 550MHz, Solid, Bulk Ethernet Cable
Cat6 Plenum (CMP) - 23AWG, UTP, 550MHz, Solid, Bulk Ethernet Cable
Cat6 Plenum (CMP) - 23AWG, UTP, 550MHz, Solid, Bulk Ethernet Cable
Cat6 Plenum (CMP) - 23AWG, UTP, 550MHz, Solid, Bulk Ethernet Cable
Cat6 Plenum (CMP) - 23AWG, UTP, 550MHz, Solid, Bulk Ethernet Cable
Cat6 Plenum (CMP) - 23AWG, UTP, 550MHz, Solid, Bulk Ethernet Cable
  • SKU: TUP2404N70GY2

Cat6 Plenum (CMP) - 23AWG, UTP, 550MHz, Solid, Bulk Ethernet Cable

$65.00 $75.00
14 reviews
UL Listed
Fast, Free Shipping
25 Year Warranty
DESCRIPTION

Our Elite Cat6 plenum (CMP) is perfect for areas with air flow, air duct and drop ceiling installations. Quality is very important for plenum areas so getting safety and performance ensured cable is top priority. Our Cat6 plenum is UL and ETL verified to surpass industry safety standards making this suitable for residential and commercial installations. Our cables are tested to perform with extra headroom over Cat6 standards. The cables insulation is FEP for fire protection and the jacket emits less smoke. The easy to pull box makes short and long runs efficient and twist free. With its Plenum rated material and higher fire retardant rating this cable can also replace riser rated cable and general use (CM) rated installs. Making it able to go in the walls of your home or business. If you prefer not to work with a spline this is the cable for you. The structure of this cable is unshielded and does not contain a spline making it more flexible while keeping its high performance. We added more insulation around the wires giving you the performance you need against crosstalk. Pair with our Cat 6 unshielded keystone jacks and RJ45 plugs for an end to end solution that will boost your home or business network.

Features
  • Get 1Gb (Gigabit) speeds up to 328 feet
  • Up to 10Gb (10 Gigabit) speeds up to 165 feet
  • Easier terminations without a spline
  • Increased insulation instead of a spline for performance against crosstalk
  • Sweep frequency tested to 550MHz
  • Pure copper solid wires for optimal signal strength
  • Perfect for data, audio, video and PoE applications
  • Customize your cable runs with 250ft and 1000ft bulk lengths
  • Safer Cable: UL Listed for safety and performance compliance
Where To Use
  • Plenum Spaces
  • Areas with air flow
  • In Wall
  • Computers
  • Router & Modem
  • Switches
  • Camera
  • Smart TV
  • HDBaseT
  • PoE Devices
SPECIFICATION
Brand Elite
Category Cat6
Jacket LSFRPVC
Wire Gauge 23AWG
Shielding Unshielded
Frequency 550MHz
Twisted Pairs 4
Structure U/UTP
Cross Filler No
Rip Cord Yes
Cable O.D. 5.0 ± 0.2 mm
Conductor Solid, Pure Copper
Conductor O.D. 0.95 - 1.00 ± 0.02 mm
Installation Temp 0°C to 60°C
Bending Radius 4 X Overall Diameter
PoE IEEE 802.3af,at | PoE. PoE+
Applications 1000BASE-T, 1000BASE-TX
HDBaseT Yes
TAA Compliant Yes
Made in Taiwan
Length 1000 Feet
Weight 30 lbs.

Downloads

Fluke Test Report Download
Specification Download

Certifications:

Infinity Cable Products prides itself on offering the highest quality products possible. Our Cat6 CMP cable is tried and tested to ensure performance and compatibility.



QUESTIONS & ANSWERS

Q: What are some of the connectors that can be used on Cat6 Plenum?

A: Some of the common connectors used for this cable are RJ45's and keystone jacks. When looking for connectors make sure to match up the correct connector type to this cable. This cable is 23AWG and unshielded.

Q: Remaining count of length on this cable?

A: Yes, this cable is marked every 2 feet with the remaining length to keep track

Q: Is this cable marked with certification on the jacket?

A: Yes, this cable will have UL and ETL listed on the jacket.

Q: This cable is built without a spline. How is it for straight runs?

A: Our Cat6 cmp cable is constructed without a spline and has more insulation around the wires than your typical Cat6 cable. This creates the separation you need between the pairs for near end crosstalk. Elite cable fills a couple needs in the industry with people preferring not to terminate with a spline. Navigating through straight runs is not a problem with this cable. If you prefer a spline look to our Cat6e cable. Cat6 plenum meets ANSI/TIA-568.2-D standards.

Q: How does the packaging come for different sizes?

A: Our 1000ft size comes in a Reelex II box and our 250ft comes plastic wrapped for shorter runs

Q: When should you use plenum cable?

A: Plenum cable is built for areas with air circulation such as drop ceilings, beneath flooring and HVAC. It has a higher fire retardant than Riser (CMR) cable which help eliminate the spread of flames and toxic smoke in air flow areas. You can also use this cable in Riser areas. Learn more here: What is plenum cable?
