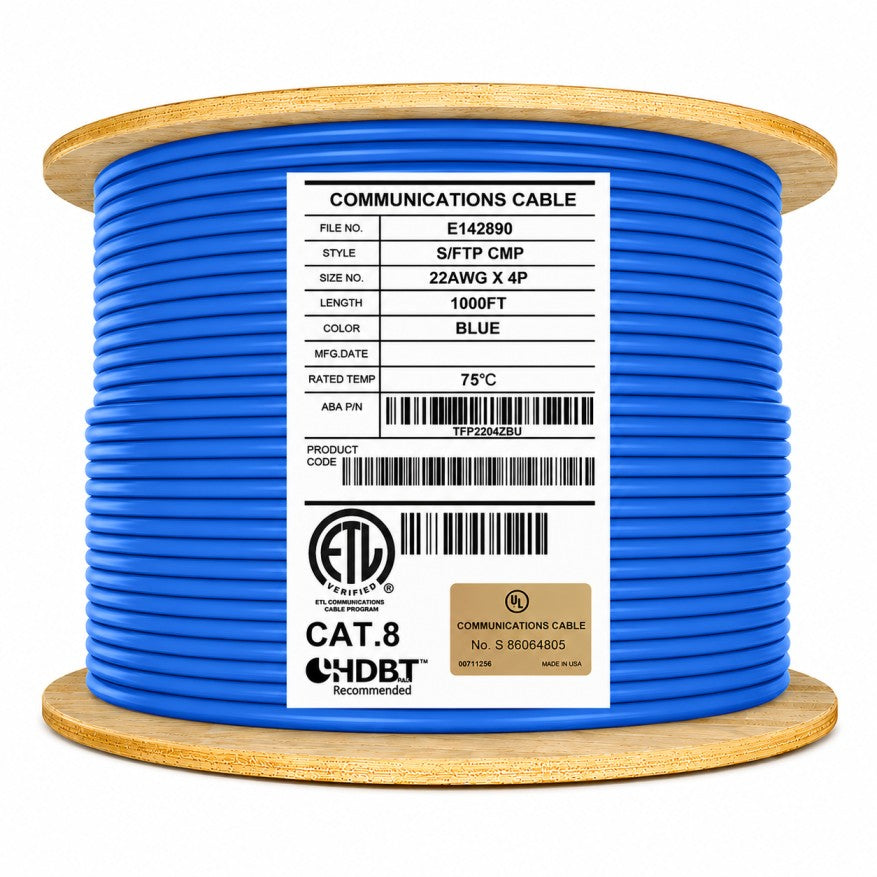

cat8 plenum cmp shielded 1000ft blue
cat8 shielded plenum cmp 1000ft 2000mhz 40gb cable side view
cat8 plenum cable ul certified
  • SKU: TFP2204ZBU

Cat8 Shielded Plenum (CMP) - 40Gb, 22AWG, 2000MHz, S/FTP, Solid, Bulk Networking Cable

$1,300.00
DESCRIPTION

We are proud to offer the first Cat8 plenum cable to be ETL verified in the world. Future proof your home, business network or data center with blazing fast speeds of up to 2000MHz. Elite Cat8 plenum cable comes constructed with double layered shielding for protection against electromagnetic interference (EMI). Category 8 Plenum cable is intended to support 25GBASE-T and 40GBASE-T applications for distances up to 98 feet (30 meters). Connect this cable with shielded connectors for a reliable and consistent network solution. Made of 100% pure copper conductors this cable will give you the signal integrity you want over long distances. If your looking to bring your network into the highest speeds possible on copper cable or want to future proof yourself for many years to come this cable is ready for you.


Features

  • The highest rated copper networking cable
  • Get the highest speed for copper cable at 40Gb and 2000Mhz
  • Plenum (CMP) rated for areas with air flow
  • Double shielded for extra protection from signal interference
  • Perfect for PoE Applications: PoE+ and PoE++
  • Solid copper conductors for optimal performance over long distances
  • Can be installed up to 98 Feet (30 Meters)
  • Pairs nicely with shielded Cat8 plugs and keystone jacks
  • UL Listed for safety and performance compliance
SPECIFICATION
Brand Elite
Category Cat8
Jacket LSFRPVC
Wire Gauge 22AWG
Shielding Shielded
Frequency 2000MHz
Twisted Pairs 4
Structure S/FTP
Cross Filler Yes
Rip Cord No
Cable O.D. 8.2 ± 0.2 mm
Conductor Solid, Pure Copper
Conductor O.D. 1.50 ± 0.02 mm
Installation Temp 0°C to 60°C
Bending Radius 4 X Overall Diameter
PoE IEEE 802.3af,at,bt | PoE, Poe+, PoE++
Applications IEEE Std 802.3bq-2016, 1G, 10G, 25G, 40GBASE-T and legacy speeds.
HDBaseT Yes
TAA Compliant Yes
Length 1000 Feet
Weight 70 lbs.

Downloads

Specification Download

Certifications:

Infinity Cable Products prides itself on offering the highest quality products possible. Our Cat8 plenum cable (CMP) is tried and tested to ensure performance and compatibility.



cat8 shielded plenum
etl listed cat8 cmp plenum cable ul certified cat8 plenum cable csa cat8 plenum cable rohs cat8 cmp plenum cable hdbaset cat8 cmp plenum cable
QUESTIONS & ANSWERS

Q: Can you confirm the diameter of the actual copper conductor without insulation?

A:  Our conductor on this Cat8 cable is about 0.61 to 0.62mm. This meets the standard requirements for 22AWG

Q: Is the product above compatible with the following items from Hikvision? DVR, PoE Switch and Camera

A: Elite Cat8 plenum cable is compatible with the items you listed. Cat8 cable is able to power up to 40Gb and is suitable for PoE applications: IEEE 802.3af, at, bt. Cat8 cable has a maximum channel length recommendation of 98 feet.

Q: How does this cable ship?

A: This cable ships in a 200lb tested shipping box. Strong enough to hold the cables weight during delivery.

Q: What connector can you use with this cable?

A: You want to use 22AWG connectors with this cable. We recommend to use either a Cat7A/Cat8 RJ45, Cat8 field termination plug or Cat8 keystone jacks. Your type of install will determine which connector you will need

Q: How does the packaging come for different sizes?

A: Our 1000ft size comes on a strong wooden reel and our 250ft comes plastic wrapped for shorter runs

Q: When should you use plenum cable?

A: Plenum cable is built for areas with air circulation such as drop ceilings, beneath flooring and HVAC. It has a higher fire retardant than Riser (CMR) cable which help eliminate the spread of flames and toxic smoke in air flow areas. You can also use this cable in Riser areas. Learn more here: What is plenum cable?

Q: When should you used shielded cable?

A: Shielded cable is perfect for areas with EMI (Electromagnetic Interference). This is common in doctors & dentist offices, business, areas around cell towers and power lines. You can learn more here: what is shielded ethernet cable?
