Elite Cat6 Riser (CMR) bulk cable is designed with headroom for tomorrow's emerging high speed LAN technologies. Cat6 CMR bulk (LAN) cables are perfect for Gigabit Ethernet, ATM, Broadband Video and PoE. This CMR rated cable is to be installed in non plenum areas, the walls and can be placed in between the floors. Elite Cat6 riser is constructed above standards that will make any project successful. The features are top of the line performance boasting a high performance of transmission frequencies up to 550MHz. This Cat6 riser cable is built without a spline for when greater flexibility is needed. Elite has included more insulation around the wires to give you the performance you want against near end crosstalk. The advanced designed box has the strength to hold up in any condition and makes pulling a breeze. On top of that the Reelex II box is Eco-Friendly and is 100% recyclable. The structure is perfectly assembled to master any project and configure for horizontal and buildings backbone. Quality comes first with Elite Cat6 Riser Cable so you know what you are getting is truly a step ahead. 100% pure copper for greater performance and exceeds Cat6 industry standards. All one thousand feet of the jacket is marked every 2 feet so you know how much length is left. Pair this cable with Cat6 unshielded connectors for a network your home or business has always wanted.
|Cable O.D.||5.4 ± 0.2 mm|
|Conductor||Solid, Pure Copper|
|Conductor O.D.||0.97 - 1.04 ± 0.02 mm|
|Installation Temp||0°C to 60°C|
|Bending Radius||4 X Overall Diameter|
|PoE||IEEE 802.3af,at | PoE. PoE+|
|Applications||1000BASE-T, 1000BASE-TX and 1Gb|
|Length||250ft. & 1000ft.|
|Fluke Test Report||Download|
Infinity Cable Products prides itself on offering the highest quality products possible. Our Cat6 CMR cable is tried and tested to ensure performance and compatibility.
Q: Can this cable be used for PoE?
A: Yes cat6 riser cables can absolutely be used for PoE applications.
Q: Is this cable resistant to weather?
A: This cable is mainly for indoors, however if placed in conduit it can get by being outdoors but for how long it depends on your weather conditions so we do recommend our outdoor Cat6 cable for those type of installs.
Q: Does this cable have a spline?
A: This specific cable does not have a spline. This cable will perform to cat 6 standards and without the spline it does make the cable a little more flexible which some people like. There is more insulation on this cable around the wires for performance against near end crosstalk. If your preference is to work without a spline this a a great solution. Our Cat6 riser meets ANSI/TIA-568.2-D standards.
Q: Certification marked on the jacket?
A: Yes this Cat6 Riser (CMR) cable has UL certification on our jacket. Happy to say that all our cables have the certification marked on the jacket.
Q: Are the wires on this cable pure copper?
A: We only supply networking cable that has pure copper wires.
Q: When should you use riser cable?
A: Riser (CMR) rated cable is suitable for installations in walls, risers, and beneath flooring in non plenum spaces. It has a higher fire retardant than general use (CM) cable making it safe to put in the walls. Learn more here: What is riser cable?
Q: What's the difference between solid vs stranded Cat6?
A: Solid Cat6 cable is constructed to be ran over longer distances in your home, business or office. Solid cable gives you more strength for pulls and can be put inside walls. Stranded Cat6 cable is more flexible than solid and is typically used for creating patch cables.
Q: How does the packaging come for different sizes?

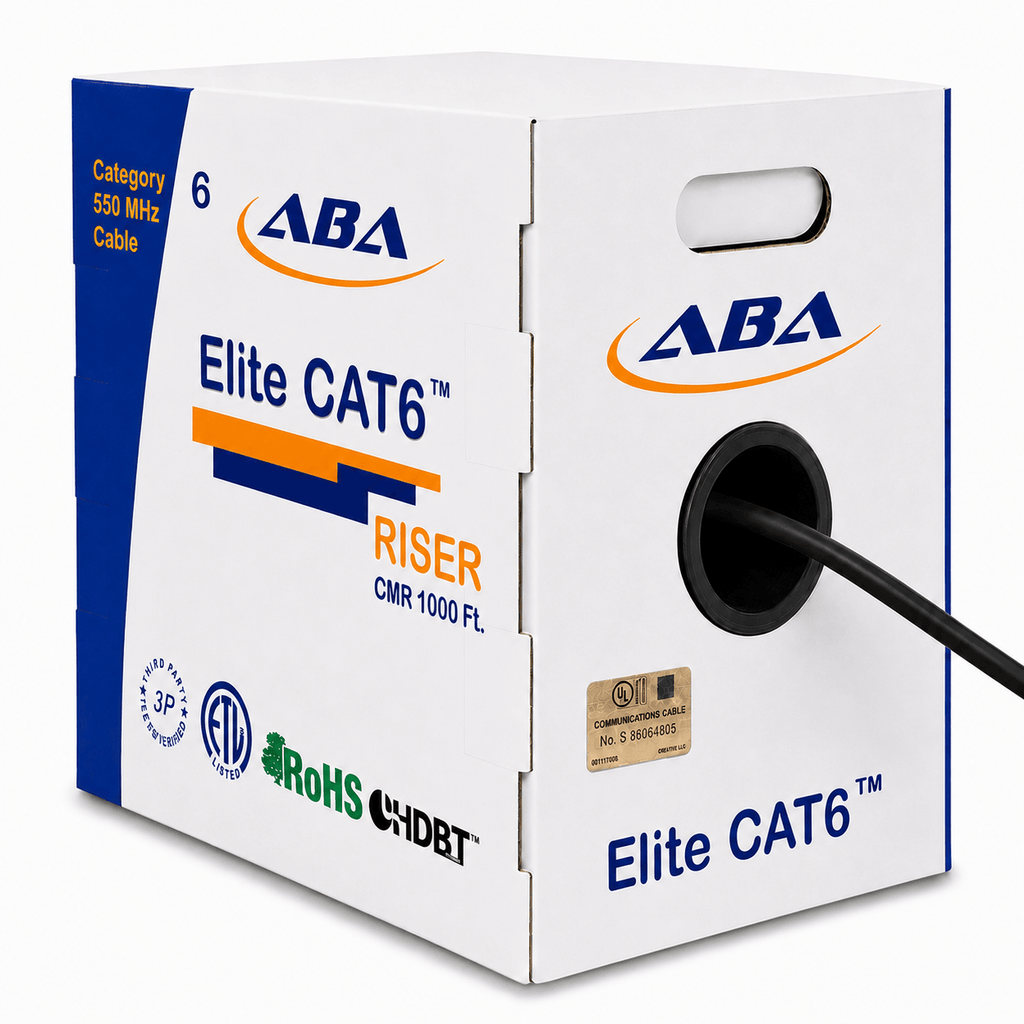

A: Our 1000ft size comes is a Reelex II box and our 250ft comes plastic wrapped for shorter runs
