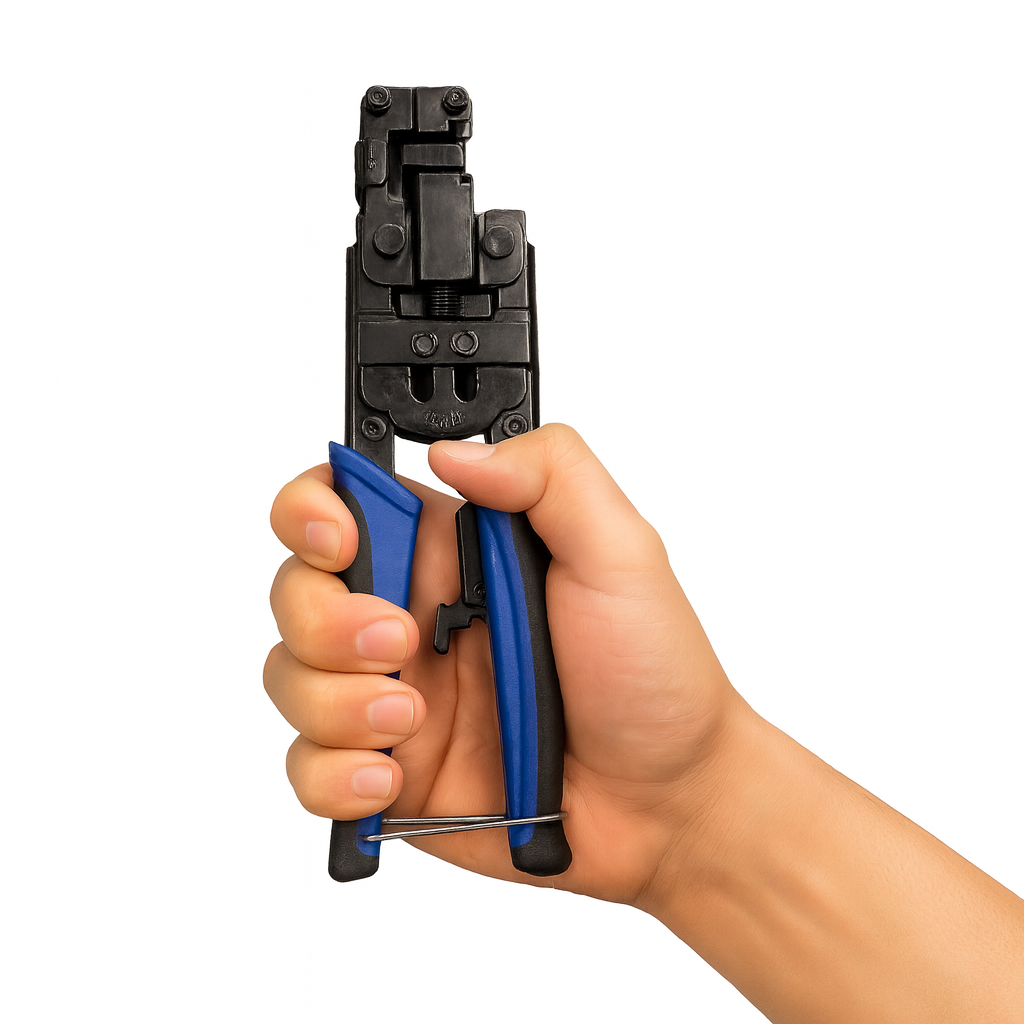

Elite Cable’s 90° termination tool engineered for effortless and accurate terminations on Cat5e, Cat6, and Cat6A keystone jacks. Designed with a spring-loaded handle and punch mechanism, this tool ensures a clean cut and punch in one seamless action. Whether you're on the job site or in the field, the rugged all-metal body offers exceptional durability for high-volume installations.
Features
| Brand | Elite Cable |
| Product Code | PDT-090-J |
| Tool Type | 90° Termination/Crimping Tool |
| Compatible Categories | Cat5e, Cat6, Cat6A |
| Function | Terminates, punches down, and cuts wires in one step |
| Compatible Components | Keystone Jacks with IDC terminals |
| Applications | Structured cabling installations for Ethernet and telecom |
| Compatible Jack Orientation | 90° |
| Usage Steps |
1. Arrange 8 wires into IDC 2. Insert jack into tool slot 3. Squeeze handles to punch & cut 4. Remove finished jack |
Downloads
| Specification | Download |
Q: What is this termination tool used for?
A: This tool is designed to terminate compatible 90 degree Ethernet keystone jacks by punching down and trimming all eight conductors in a single operation, helping speed up structured cabling installations.
Q: What cable categories is this tool compatible with?
A: This tool is compatible with Cat5e, Cat6, and Cat6A Ethernet installations when used with compatible 90 degree keystone jacks.
Q: Does this tool work with shielded and unshielded keystone jacks?
A: This termination tool is specifically designed for compatible Elite 90 degree unshielded keystone jacks. Always verify compatibility before using it with other keystone jack designs or brands.
Q: Does this tool punch down and trim the wires at the same time?
A: Yes. The tool is designed to terminate all eight conductors while trimming the excess wire in one motion, helping create fast, consistent terminations.
Q: Can this tool be used with standard 180° punch down keystone jacks?
A: No. This tool is designed specifically for compatible 90° degree keystone jacks.
Q: Why should I use a dedicated termination tool?
A: A dedicated termination tool helps produce faster, more consistent terminations while reducing installation time and helping ensure each conductor is fully seated in the IDC contacts.
Q: Is this tool suitable for professional installers?
A: Yes. The heavy duty steel construction is designed for repeated use, making it an excellent choice for network installers, electricians, low voltage contractors, and IT professionals.
Q: Can this tool be used for large installation projects?
A: Yes. Its durable all metal construction and one step punch and cut operation make it well suited for high volume structured cabling installations.
Q: Is a separate wire cutting tool required?
A: No. This tool punches down the conductors and trims the excess wire in the same operation, eliminating the need for a separate cutting tool during termination.
Q: What types of installations is this tool commonly used for?
A: This tool is commonly used for Ethernet wall plates, patch panels, structured cabling systems, commercial networks, residential networking, offices, schools, data rooms, and other low voltage installations using compatible 90 degree keystone jacks.
