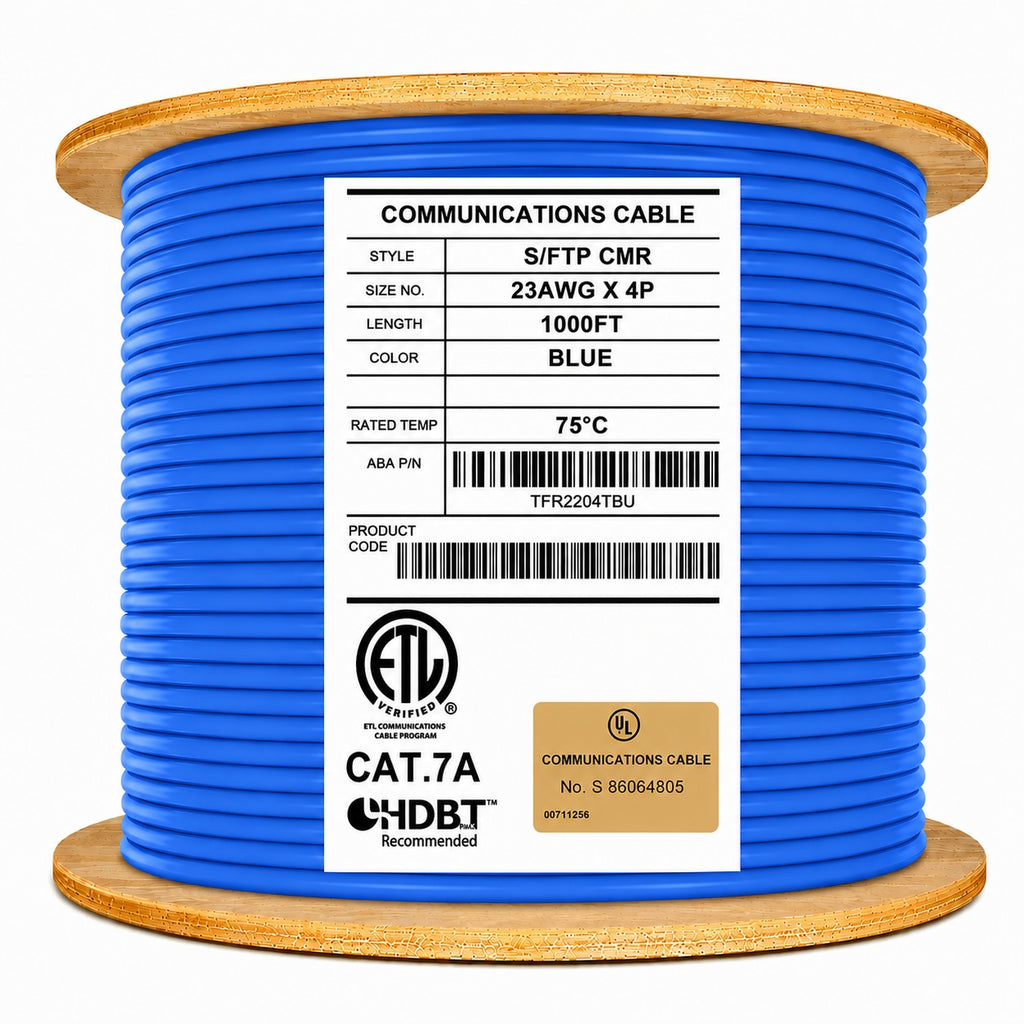

cat7a cmr riser cable 1000 ft. reel shielded blue tfr2204tbu
cat7a cmr riser shielded blue on reel side view
cat7a cmr riser 1000ft cable structure
cat7a riser cable ul certified
cat7a cmr riser cable 1000 ft. reel shielded white tfr2204twh
cat7a cmr riser cable 1000 ft. reel shielded grey tfr2204tgy
  • SKU: TFR2204TWH

Cat7A Shielded CMR (Riser) - 10Gb, 23AWG, 1000MHz, S/FTP, Solid, Bulk Networking Cable

$349.00 $420.00
16 reviews
DESCRIPTION

Elite Cat7A CMR cable is ready to boost your network speed. This Cat7A cable is riser rated or also known as in wall rated making it the perfect choice for installations inside the walls and placed in between the flooring. This augmented versions of Cat 7 cable is double shielded and its jacket is flame retardant pvc giving you extra protection against increase temperatures after installation. The performance you get from this cable is high-speeds of 1000 MHz making it suitable for long runs of 10GBASE-T. Look no further as this top of the line cable will be your perfect solution for Ethernet, ATM, broadband video and PoE applications.


Features

  • Boost your network performance with 1000MHz and 10Gb
  • Double shielded for extra protection from EMI and signal interference
  • Perfect for PoE Applications
  • Can be installed up to 328 Feet
  • Pairs nicely with our Cat7A/8 plugs and shielded Keystone Jacks
  • CMR Rated for In walls and between flooring and floors.
  • Solid conductors make for a stronger signal over longer distances.
  • UL Listed for safety and performance compliance
SPECIFICATION
Brand Elite
Category Cat7A
Jacket FEP
Wire Gauge 23AWG
Shielding Shielded
Frequency 1000MHz
Twisted Pairs 4
Structure S/FTP
Cross Filler Yes
Rip Cord No
Cable O.D. 8.0 ± 0.2 mm
Conductor Solid, Pure Copper
Conductor O.D. 1.45 ± 0.02 mm
Installation Temp 0°C to 60°C
Bending Radius 4 X Overall Diameter
PoE IEEE 802.3af,at,bt | PoE, PoE+, PoE++
Applications 1000 Base-T. 1000 Base-TX, 10GBaseT and Legacy Speeds
HDBaseT Yes
TAA Compliant Yes
Length 1000 Feet
Weight 55 lbs.

Certifications:

Infinity Cable Products prides itself on offering the highest quality products possible. Out Cat7A CMR cable is tried and tested to ensure performance and compatibility.



cat7a cmr certification
etl listed cat7a cmr riser cable ul listed cat7a cmr riser cable csa cat7a cmr riser cable rohs cat7a cmr riser cable hdbaset cat7a cmr riser cable

Downloads


Cat7A Riser Specification
Fluke Test Report
QUESTIONS & ANSWERS

Q:  What layers of shielding are on this cable?

A:  Our Cat7A cmr cable has each individual pair wrapped in metal foil and an overall braid wrapped around each

Q:  Can Cat7A be terminated with RJ45's

A:  You can use Rj45's with this cable. We do recommend our Rj45's to be able to fit the wires of this cable. You can also terminate this cable onto Cat8 Keystone jacks.

REVIEWS
Customer Reviews
5.0 Based on 16 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
RR
06/18/2020
Rich R.
los angeles, ca
very helpful

Had a few problems trying to fit it into some rj45 we had on hand, this cable is very thick. Was assured that they offered the rj45 for this cable and that the thickness of course should be expected for CAT7A. Very happy with the service and quick solution.

DG
06/02/2020
Dave G.
United States United States
CAT7 Install

Great. Arrived as promised and was easy to install. Infinity gave me some tech support that was key and made the whole process of wiring my 110 year old house a snap. Thanks.

LL
10/14/2019
Leland L.
United States United States
Outstanding

My 3rd order and all have exceeded my expectations. Thank you.

LX
10/14/2019
Long X.
United States United States
CAT 7 cable and RJ45

Excellent customer service. RJ45 shipped with spool of CAT7 was damaged during shipment. Replacements were shipped out right away. Great customer service and will definitely buy again.

CG
10/10/2019
Catherine G.
United States United States
Knowledgable company with fast shipping!

This company was knowledgeable, their cable has tested specs so you know what you are getting, and shipping was fast! Very pleased with the cable!
