Our Cat6A unshielded CMR cable is a high performance solution for audio, video and data applications. UTP Cat6A CMR is riser rated for in the walls of your home or business improving your network up to 10Gb. This cable has a spline separating the four twisted pairs for better near end crosstalk. Not only that but our unshielded Cat6A riser cable has a zig zag jacket design giving you even more room between the pairs. This gives you the best performance against near end crosstalk. Combine this with a higher spec twist rate this cable is sure to boost your network for years to come. Our Cat6A unshielded CMR cable is 1000 feet in length wrapped around a wooden spool giving you enough length to run around your home or business. Solid 100% pure copper conductors give you highest performance for signal strength over long distances. Pair with Cat6A 23AWG unshielded connectors for a network that shines.
Features
Brand | Elite |
Category | Cat6A |
Jacket | FRPVC |
Wire Gauge | 23AWG |
Shielding | Unshielded |
Frequency | 650MHz |
Twisted Pairs | 4 |
Structure | U/UTP |
Cross Filler | Yes |
Rip Cord | Yes |
Cable O.D. | 8.3 ± 0.2 mm |
Conductor | Solid, Pure Copper |
Conductor O.D. | 1.08 - 1.19 ± 0.02 mm |
Installation Temp | 0°C to 60°C |
Bending Radius | 4 X Overall Diameter |
PoE | IEEE 802.3af,at | PoE, PoE+ |
Applications | IEEE 802.3 an, 1Gb, 10GBase-T and Legacy speeds |
HDBaseT | Yes |
TAA Compliant | Yes |
Made in | Taiwan |
Length | 1000 Feet |
Weight | 54 lbs. |
Downloads
Fluke Test Report | Download |
Specification | Download |
Certifications:
Infinity Cable Products prides itself on offering the highest quality products possible. Our Cat6A CMR UTP cable is tried and tested to ensure performance and compatibility.
Q: Can you further explain what the zig zag jacket is?
A: Our Cat6A unshielded cmr cable has a zig jag jacket that helps create more space between the wires. The zig zag design is on the inside of the jacket and is smooth on the outside as you see on ethernet cable. Creating more space between the pairs give you better performance against crosstalk which is interference between the pairs. The further apart they are the better performing it is. So pairing our increase insulation and zig zag jacket this gives you exceptional performance against crosstalk.
Q: Is unshielded cable ok for home use?
A: Unshielded cable is perfect for home use. You'll find the structure easy to work with and pairs easily with our unshielded connectors such as RJ45 plugs or keystone jacks.
Q: What connectors are recommended with this cable?
A: This Cat6A cable is going to be thicker than Cat6 cable so you want to use Cat6A rated connectivity. Also RJ45's that are rated for 23AWG. This ensures that the wires/cable can fit inside the plug. We have a large selection of keystone jacks for this cable. See out compatible products at the bottom of the product page.
Q: How far can you run this cable?
A: Cat6A cable can power 10 gigabit speeds up to 328 feet (100 meters).
Q: How does the packaging come for different sizes?

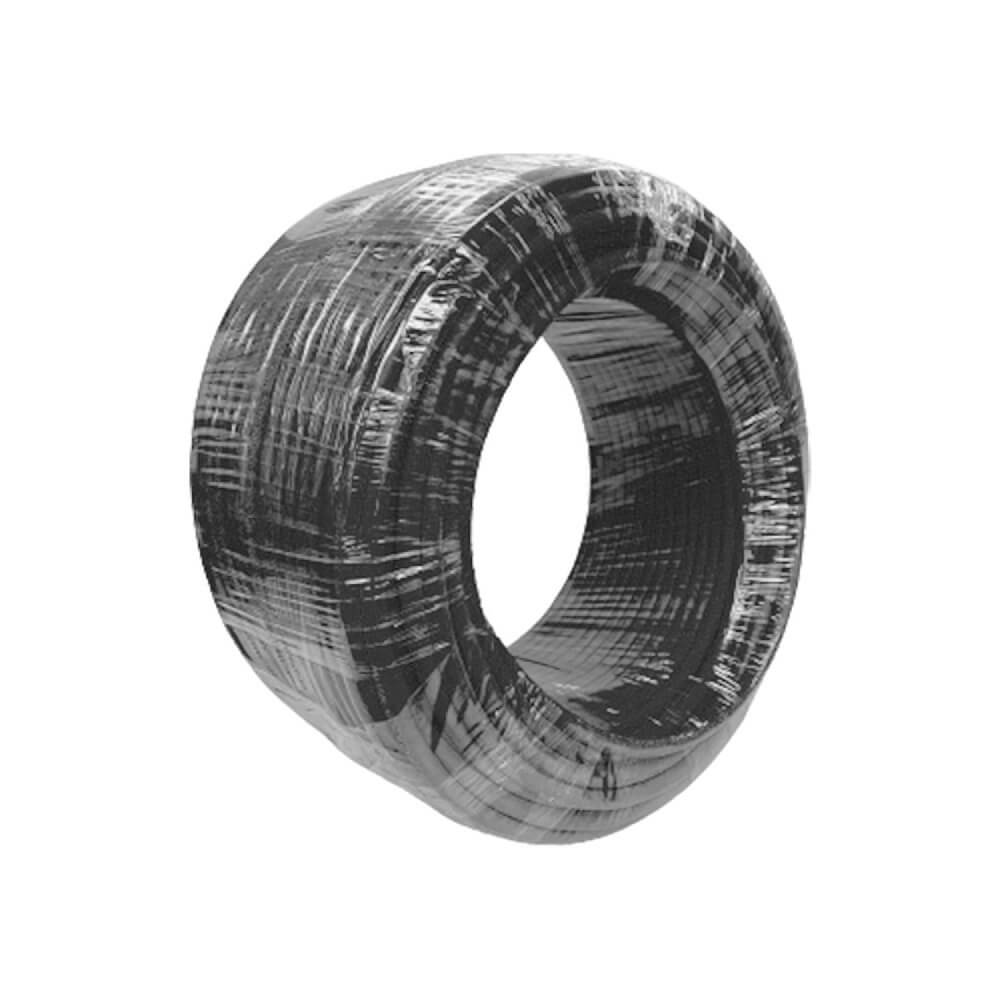

A: Our 1000ft size comes on a strong wooden reel and our 250ft comes plastic wrapped for shorter runs.
