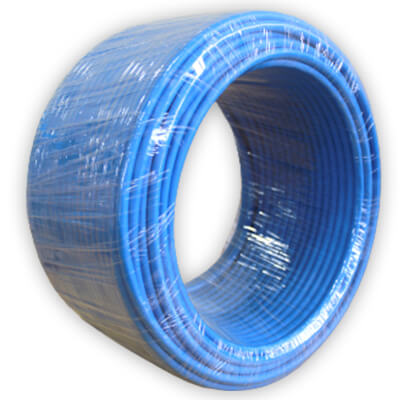

cat5e shielded plenum 250ft
  • SKU: TSP2404N09BU2

Cat5e Shielded Plenum (CMP) - F/UTP, 24AWG, 350MHz, Solid, Bulk Networking Cable

$81.00 $91.00
5 reviews
UL Listed
Fast, Free Shipping
25 Year Warranty
DESCRIPTION

Our Elite Cat5e shielded plenum (cmp) rated cable is perfect for plenum rated installs. Plenum spaces are locations with air flow such as air conditioning systems, heat or above the ceiling. Our plenum cable has a low smoke jacket that emits less toxic fumes and has high grade flame retardant. To ensure standard our Cat 5e shielded plenum cable roll is UL and ETL verified for performance and safety measures. This cable is suitable for 1Gb applications making it the perfect choice for your home or office when plenum is required. This shielded cable has an overall metal foil screen around the four twisted pairs for protection against EMI.  Cat5e shielded plenum cable is a great choice for fighting signal interference. The thousand feet of cable has a running length count every 2 feet. Our Cat5e shielded plenum cable is high grade, performance tested and ready to ship today!

Features

  • Get gigabit (1,000 mbps) speeds up to 328 Feet
  • Shielded for protection from EMI & signal interference
  • Plenum rated for installs in areas with air flow
  • Frequencies up to 350MHz
  • Customize your network with 1000ft and 250ft bulk length
  • UL Listed for safety and performance compliance

Compatible With:
Cat5e RJ45 PlugRJ45-8C6A-FTP
Cat6 Shielded Keystone Jack: KJ-E8S-C6AB

SPECIFICATION
Brand Elite
Category Cat5e
Jacket LFRPVC
Wire Gauge 24AWG
Shielding Shielded
Frequency 350 MHz
Twisted Pairs 4
Structure FTP
Drain Wire Yes
Cable O.D. 5.8 ± 0.2 mm
Conductor Solid, Pure Copper
Conductor O.D. 0.99 - 1.01 ± 0.02 mm
Installation Temp 0°C to 60°C
Bending Radius 4 X Overall Diameter
PoE IEEE 802.3af,at | PoE, PoE+
Applications 100BASE-T / 1Gb
TAA Compliant Yes
Made in Taiwan
Length 1000 Feet
Weight 34 lbs.

Downloads

Specification Download

Certifications:

Infinity Cable Products prides itself on offering the highest quality products possible. Our Cat5e shielded plenum cable is tried and tested to ensure performance and compatibility.



QUESTIONS & ANSWERS

Q: What is F/UTP?

A: F/UTP or also seen as FTP is type of structure that has shielding surrounding around all four twisted pairs.

Q: What type of connectors should we use with shielded Cat5e cable?

A: When installing shielded cable it is recommended to keep the whole cable run shielded. This includes the connectors such as RJ45's and keystone jacks. This makes sure the whole network is protected.

Q: Certification listed on jacket?

A: Absolutely! Our cables have our certification marks listed on the jacket such as UL and ETL numbers.

Q: What is the purpose of the ground wire in the cable?

A: Drain wires in shielded cable help you properly ground the cable. After grounding a shielded cable it helps in giving the shield the function it needs to protect from EMI.

Q: When should you used shielded cable?

A: Shielded cable is perfect for areas with EMI (Electromagnetic Interference). This is common in doctors & dentist offices, business, areas around cell towers and power lines. You can learn more here: what is shielded ethernet cable?

Q: How does the packaging come for different sizes?

A: Our 1000ft size comes on a strong wooden reel and our 250ft comes plastic wrapped for shorter runs

Q: When should you use plenum cable?

A: Plenum cable is built for areas with air circulation such as drop ceilings, beneath flooring and HVAC. It has a higher fire retardant than Riser (CMR) cable which help eliminate the spread of flames and toxic smoke in air flow areas. You can also use this cable in Riser areas. Learn more here: What is plenum cable?
