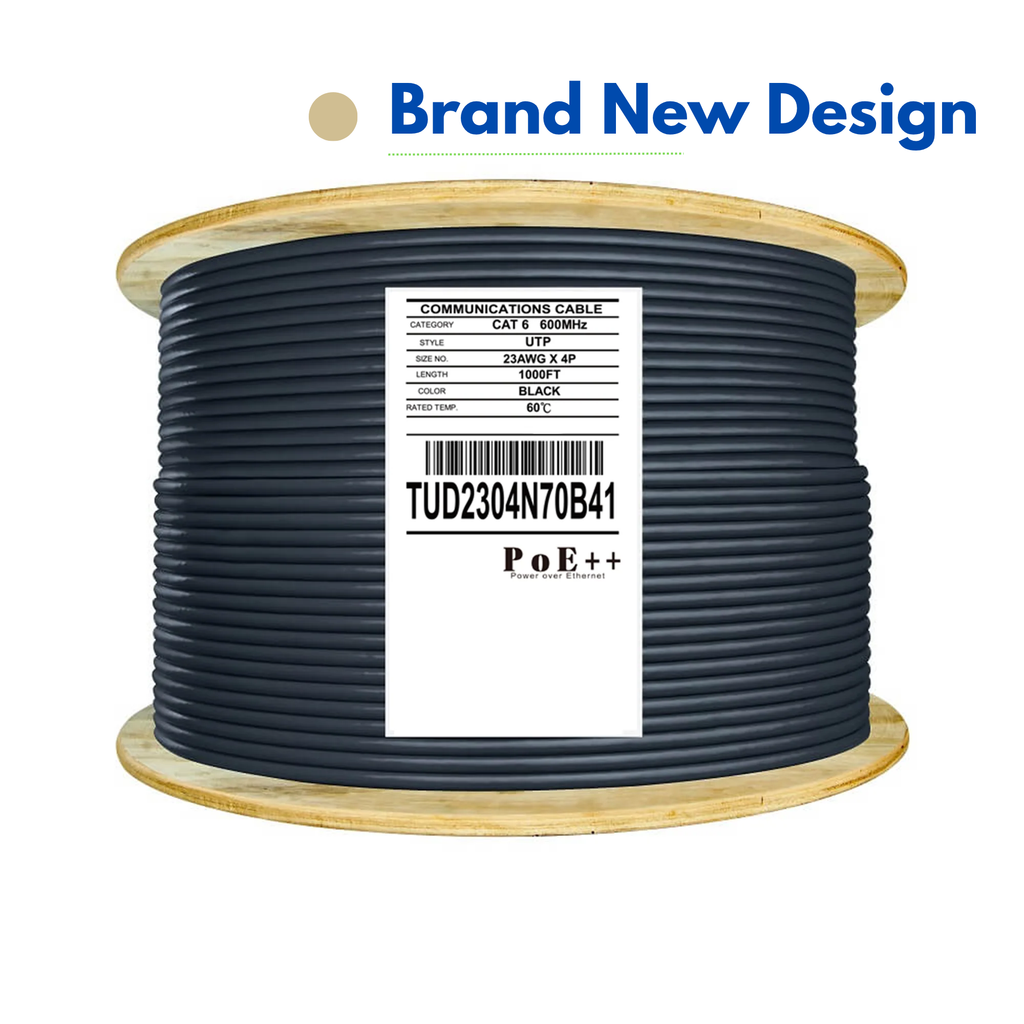

Take your outdoor network performance to the next level with our Cat6 Direct Burial Cable, engineered for reliability and durability in any environment. The sunlight resistant polyethylene jacket ensures long lasting performance under UV exposure, and its direct burial design makes it ideal for trenching or underground installation without conduit. With cross filler construction to reduce crosstalk and maintain signal integrity up to 600 MHz, this cable is perfect for outdoor data, video, and PoE applications. Designed to meet ANSI/TIA-568.2-D and ISO/IEC 11801 standards, it provides the strength and stability your high performance network demands anywhere you need it.
Features
| Brand | Elite |
| Category | Cat6 |
| Jacket | LDPE |
| Wire Gauge | 23AWG |
| Shielding | Unshielded |
| Frequency | 600 MHz |
| Twisted Pairs | 4 |
| Structure | U/UTP |
| Drain Wire | No |
| Cable O.D. | 7.1 ± 0.2 mm |
| Conductor | Solid bare copper |
| Conductor O.D. | 1.12 ± 0.02 mm (with insulation) |
| Storage & Shipping Temp | -20°C to 60°C |
| Installation Temp | 0°C to 60°C |
| Operation Temp | -20°C to 60°C |
| Bending Radius | 4 X Overall Diameter |
| PoE | IEEE 802.3af,at,bt | PoE, PoE+, PoE++ |
| Applications | 1000BASE-T/1000BASE-TX |
| Made in | Thailand |
| Length | 1000ft |
Downloads
| Specification | Download |
Q: What does U/UTP mean?
A: U/UTP stands for Unshielded Twisted Pair. The cable does not include foil or braided shielding and instead relies on tightly twisted wire pairs to help reduce crosstalk and maintain reliable network performance.
Q: When should I choose unshielded cable instead of shielded cable?
A: Unshielded cable is an excellent choice for most residential and commercial installations where electromagnetic interference is minimal or non existent.
Q: What is the benefit of gel filled cable?
A: The gel filled core helps prevent moisture from traveling through the cable if the outer jacket is damaged, providing added protection and improving long term reliability in direct burial installations.
Q: Can this cable be installed in conduit?
A: Yes. Although this cable is rated for direct burial, it can also be installed inside conduit when additional mechanical protection is preferred or required by local building codes.
Q: What is the maximum distance this cable can be run?
A: When properly installed and terminated, Cat6 cable supports channel lengths of up to 328 feet or 100 meters in accordance with ANSI TIA standards.
Q: Why are solid bare copper conductors important?
A: Solid bare copper conductors provide lower resistance, stronger signal transmission, and improved PoE performance compared to copper clad aluminum cable, making them the preferred choice for permanent Ethernet installations.
Q: What is the purpose of the cross filler?
A: The internal cross filler helps maintain proper spacing between the twisted pairs, reducing crosstalk and supporting stable signal performance for high speed Ethernet applications.
Q: Can this cable be used with PoE devices?
A: Yes. This cable supports PoE, PoE+, and PoE++ applications, making it suitable for IP cameras, wireless access points, VoIP phones, access control devices, and other powered network equipment.
Q: What applications is this cable commonly used for?
A: This cable is commonly used for outdoor network installations, IP security cameras, wireless access points, outdoor wireless bridges, building to building Ethernet connections, smart home networking, and other direct burial networking applications.
Q: Is this cable suitable for Gigabit Ethernet?
A: Yes. This Cat6 cable is designed to support Gigabit Ethernet networks and, under proper installation conditions, can also support 10 Gigabit Ethernet over shorter distances.
Q: Is this cable suitable for professional installations?
A: Yes. This Cat6 direct burial cable is trusted by network installers, electrical contractors, IT professionals, and system integrators for residential and commercial outdoor networking projects.
