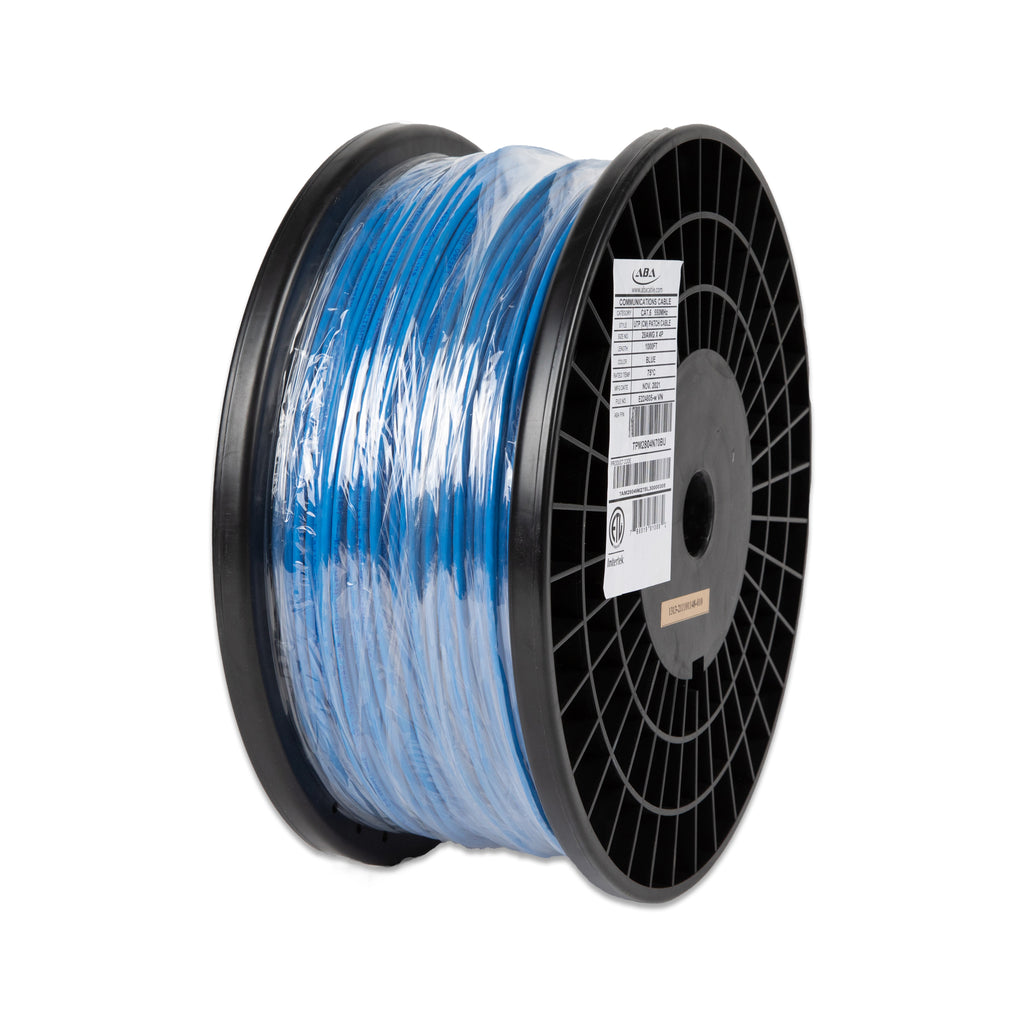

Our Elite Cat6A Stranded cable is 3.5mm vs 6.9mm of standard Cat6A cable. This cable is used to create patch cables between network interface cards (NICs) and wall plates or between patch panels, hubs, and other rack mounted equipment. Stranded cable is more flexible than solid cable for bends around corners and behind computers from wall jacks. Save space in and around your patch panels and networking equipment with a 28AWG cable. These cables meet ANSI/TIA-568.2-D-10 specifications. Terminate only with 28AWG RJ45s and not keystone jacks. This Cat 6A cable is perfect for your shorter runs and its bulk length makes it great for custom jobs.
Features
Maximum Distance
The recommended maximum total channel length of 28AWG is up to 96.2ft. The max length patch cable is 52ft when it is by itself and not apart of a horizontal run of solid cable. See the chart below for more.
| Patch Cable AWG | Horizontal Cable (ft) | Patch Cable Length (ft) | Channel Length |
| 28 |
0 |
52.3 | 52.3 |
| 28 | 25 | 39.5 | 64.5 |
| 28 | 90 | 6.2 | 96.2 |
| 28 | 82.5 | 10 | 92.5 |
| Brand | Elite |
| Category | Cat6A Stranded |
| Jacket | PVC |
| Wire Gauge | 28AWG |
| Shielding | Unshielded |
| Frequency | 500MHz |
| Twisted Pairs | 4 |
| Structure | U/UTP |
| Cross Filler | No |
| Rip Cord | No |
| Cable O.D. | 3.6 ± 0.2 mm |
| Conductor | Stranded |
| Conductor O.D. | 0.62 ± 0.02 mm |
| Storage & Shipping Temp | -20°C to 75°C |
| Installation Temp | 0°C to 60°C |
| Operation Temp | -20°C to 75°C |
| Bending Radius | 4 X Overall Diameter |
| PoE | IEEE 802.3ab 1000BASE-T | PoE, PoE+, PoE++ |
| Applications | IEEE 802.3ab 1000BASE-T, 1000BASE-TX and legacy speeds |
| TAA Compliant | No |
| Made in | Thailand |
| Length | 1000 Feet |
| Weight | 20 lbs. |
Downloads
| Specification | Download |
Certifications:
Infinity Cable Products prides itself on offering the highest quality products possible. Our Cat6A Stranded CM 28AWG cable is tried and tested to ensure performance and compatibility.
